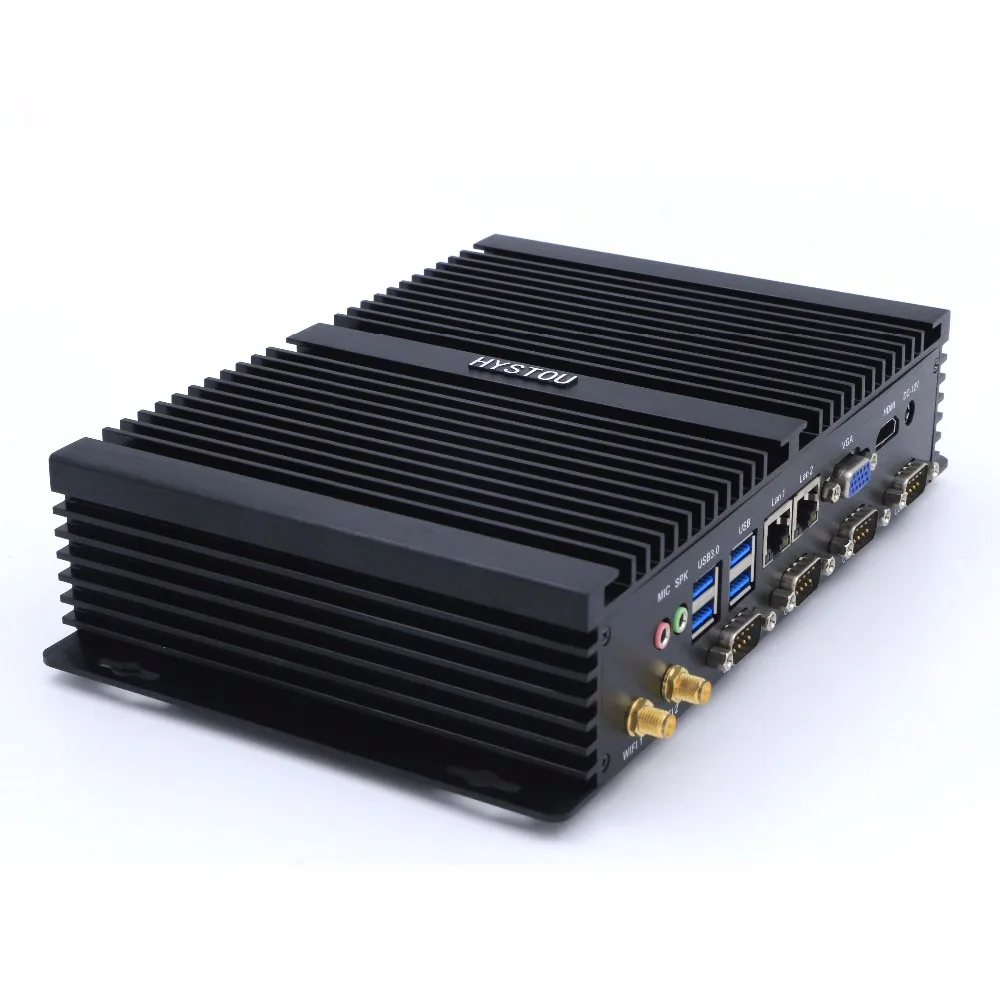

Industrial computer Core i5 3317U 1037U 2 NICs Dual LAN 4*RS232 COM USB 3.0 tiny itx Mini PC Windows XP Small form Tablet
1. The case has upgraded with Core i5 3317U/1037U processor.
2. Preinstall Windows XP OR Win7 Cracked version, with less useless programe. If you need Windows 7/8.1(1037U don’t support Windows 10) or Linux, please leave us a message.
3.We will send the power plug according to buyer’s country.
4. The OS drivers can be provided as in a DVD within the package ship to you.
5. We promise will send out the #s out after our technician’s test.
6. We default send the SATA cables with the PC.
HYSTOU Compact PC Core i5 3317U Celeron 1037U 2 NICs Dual LAN 4*RS232 COM USB 3.0 tiny itx Mini PC Windows XP Small form Tablet
On this page we have 2 type case and 2 types CPU for your choice:
1. Core i5 3317U 3M Cache 1.7GHz Turbo 2.6GHz Intel HD 4000 Graphics
2. Intel Celeron 1037U 2M Cache 1.8GHz No Turbo Boost Intel HD Graphics
Built with PC mount can be fixed on a wall or someother place.
How about the cooling? Will it get hot when operating?
Waffle surface design, All aluminium case design can help the PC with good cooling performance.
With imported from Germany heat conduction silicon gel on the CPU, to connect the CPU and the Case can help the CPU release the heat.
So if you need to open the case, hope you can carefull, do not damage the silicon gel.
You can choose the system below. And Now windows 10 is also available.
With 2* RJ45 Gigabit LAN port, 300M WiFi.Internet access is more convenient.
Intel HD 4000 Graphics(Celeron 1037U with Intel HD Graphics)+ VGA+HDMI support 4K(3840*2160)& 1080P Full HD& Blu-ray dual display. Support DirectX 11 ,3D games perfomance well! Support 5GB ultra HD film decoding.
Core i5 3317U processor TDP 17W, even operating 24hours per day, that will be only 1mah 2days! Comparing with the normal computer, it will save about 80% energy.
Built in all solid Capacitor, industrial grade motherboard. Applicable to a variety of extreme environment.
BIOS: AMI BIOS. Support Power-on and Wake up on LAN.
Support 7*24 hours long time operation!
Specifications:
| General | |
| Processor | Intel Core i5 3317U/Celeron 1037U Dual Core 4 thread |
| Operating System | Windows XP/ Windows 7/ Linux/10 |
| Storage |
SSD: 8G/16G/32G/64G/128G/256G
HDD: 160G/320G/500G/1TB
Can install 1SSD(OS)+1HDD(Data saving)
|
| Ram | DDR3L 2GB/4GB/8G,DDR3/L/-RS 1333/1600 MHz SODIMM 1.35v Notebook memory; |
| Display Card Details | |
| Graphic Cards | Intel Ivy Bridge Graphics Controller(776MB/ Intel) |
| Resolution (MAX) | Support HD resolution, 32 bit color depth 60Hz |
| Audio Cards | Intel(R) display audio @ Intel Panther Point High Definition |
| Network | |
| Network card | 2*Intel 82574L Gigabit NIC |
| Ethernet | 10/100/1000Mbps Adaptive Gigabit Lan |
| WIFI | 802.11.b/g/n(150M or 300M Optional) |

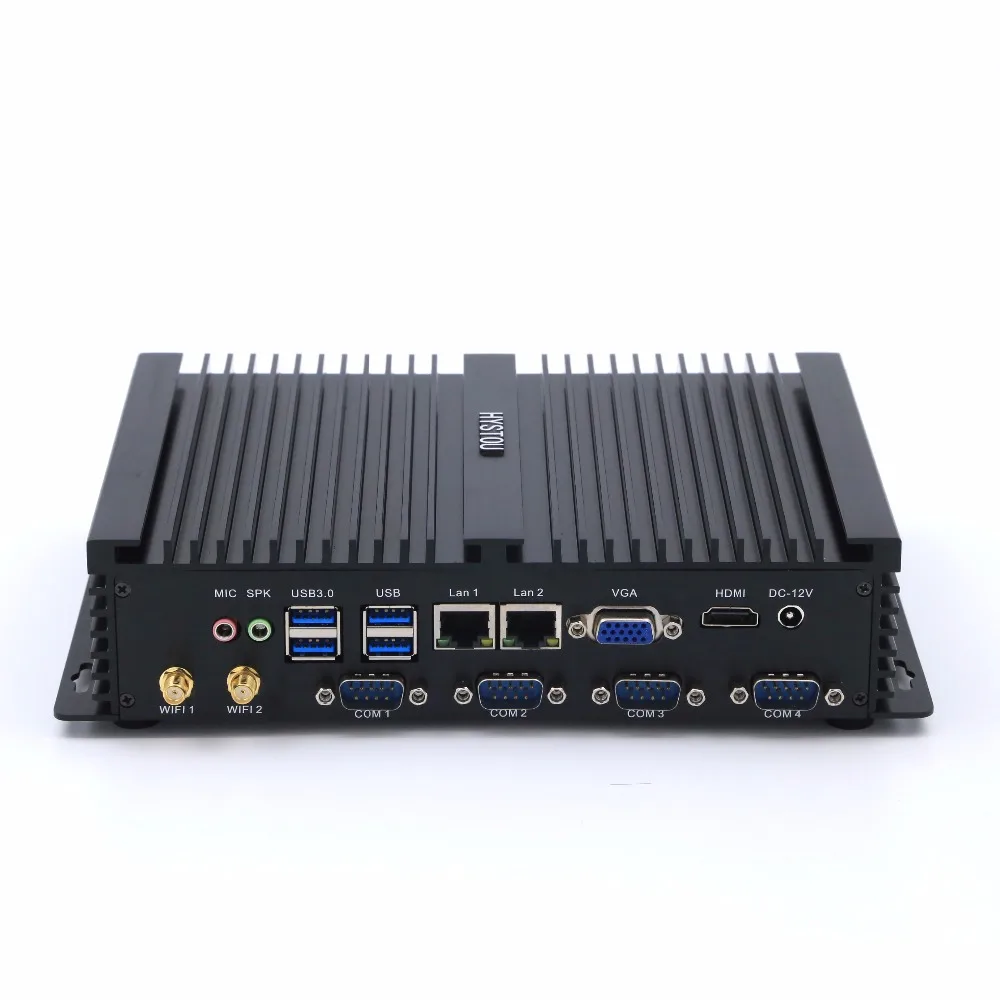

| I/O port | |
| Display port | 1* VGA+ 1* HDMI |
| USB port | 4 * USB 3.0 ports; 4* USB 2.0 ports |
| RS232 | 4 * RS232 COM ports |
| Ethernet port | 2* RJ 45 10/100/1000Mbps Adaptive |
| Power input port | 1 inner diameter 2.5mm,external diameter 5.5mm |
| Audio | Standard 3.5 Audio input and output |
| Power and Working Environment | |
| Input | DC100-240V AC/50-60Hz |
| Output | DC 12V/3A |
| Type | External power adapter mode |
| Consumption | 12 to 16W |
| Noise | No Noise |
| Temperature | -10 to 50 Centigrade (max 90 centigrade itself) |
| Humidity | 10%-85% |
| Product Dimension & Details | |
| Size | 234*150*48MM |
| Weight | NW: 1.8kg; GW: 2.5kg |
| Package Box | Neutral Color Export Box |
| Content | Mini PC device, Power Adapter, Desk base, Antennas |
Normally we will provide free shipping by DHL, but we will also send by the other carriers for free shipping in different cases, they are UPS/EMS/Fedex etc.
Case 1: Your shipping area is remote location for DHL. You could find out if your area is remote area or not on DHL the website: raslist.dhl.com/jsp/first.jsp
Case 2: DHL is not allowed to use in your area. Like Russia, Brazil, Argentina.
Case 3: Good news for customers from Russia we choose SPSR-RU Belarus Ukraine Brazil etc countries, we choose eEMS(EMS upraded version) to ship parcel by default, safe, fast, with better ability of customs clearance. Delivery within about 5-10 working days by eEMS.
Except all of 3 cases, If your address is remote area for us , you should add extra shipping fees for DHL/ UPS/EMS/Fedex etc, otherwise we will choose post mail shipping for free.
Free Shipping Details:
1. The following countries by DHL free shipping:
Israel, America, Belgium, the Netherlands, Luxembourg, Italy, Germany, Britain, France, SAN marino, Austria, Denmark, Finland, Portugal, Sweden, Switzerland, Spain, Greece, Norway, Bulgaria, Cyprus, Estonia, Latvia, Lithuania, Malta, Slovakia, Slovenia, The Czech republic, Hungary, Poland, Romania etc.
2. Free shipping e-EMS or Fedex to Japan and South Korea.
3. Free shipping Post Service to other countries.
About customs, We are not responsible for buyer’s customs taxes or VAT. But we try our best to help buyer lower or avoid customs duties, usually write a value of USD $20-70 on package and describle # as “Set-Top Box”.
If you have any questions or needs, don’t hesitate to contact with us in time, we will do everything we can to help you.
1* Fanless Mini PC
1* Power Adapter
1* CD with Drivers
2* WiFi Antennas
1*SATA cable
1*user manual(include warranty card)
