Product Description
(Qotom Mini PC Q430P Quad Core 2 Gigabit LAN to Build a Router Mini PC)
Qotom Mini PC Q430P Quad Core 2 Gigabit LAN to Build a Router Mini PC |
|
Dimension |
156*128*48mm(L*W*H) |
Packaging dimension |
260*230*70mm |
Weight |
1.7Kg ( Reference ) |
Power Consumption |
15W |
Onboard CPU |
Q430P:Intel® Core™ i3-4005U Dual Core Processor
|
Memory |
Support DDR3L 1333/1600 MHz,1.35V1 x DDR3 DIMM Memory SlotMax. Supports up to 8GB Memory |
Hard Disk |
SSD MSATA – support HDD (2.5 inch SATA HDD ) |
Onboard VGA |
Intel HD4400 Graphics |
Onboard LAN |
2 * Realtek 8111E 10/100/1000 Controller |
Audio Solution |
Realtek ALC662 6-Channel HD Audio |
Front-Panel Connectors |
• power on/off button• Power LED• 1 x COM port• 2 x USB 2.0 Ports• 2 x USB 3.0 Ports |
Internal-Connectors |
• 1 x Minipcie port (for mSATA SSD)• 1 x Minipcie port (for WIFI/BLUETOOTH)• 1 x Minipcie port (for 3G/4G Module)• 1 x DDR3 DIMM Memory Slot• 1 x GPIO header• 1 x SIM card Slot• 1 x SATA Port• 1 x SATA power header• 1 x Front panel header• 1 x Front panel audio header• 1 x Front panel USB header• 1 x Automatically boot jumper |
Back-Panel Connectors |
• 1×DV 12V DC input• 2 x HD Video Connectors• 2 x RJ-45 Ports• 2 x USB 3.0 Ports• 1 x Speak Out Connector• 1 x Mic In Connector• 3 × COM ports |
Operating System |
Support Windows 7 / Windows 8 / 10 / Linux .etc |
Default OS |
We pre-install PFsense for testing and we do not provide any Windows license. |
Mini pc can meet the below requirements:
2.Business office preferred,Such as E-shop,Online office use,Environmental protection and energy saving,Saves the electricity,The power consumption is more than 17W,Company production of enterprise office,Save a space.
3.Hotel rooms dedicated computer,Elegant appearance,High grade,it’s very convenient in the hotel,Solid state design,Unzerbrechlich, nonoise,Low power consumption,Energy-saving power.
4.Dedicated computer education and training industry that’s better performance than a PC,More convenient software compatibility and more colorful,Faster speed,it’s more suitable for students in computer education industry.
5.Industrial computer designed for industrial users reserve and serial port,The design of the machine,Can be fully competent for industrial applications,All solid state design,Completely mute design,Overall plate type design is balancing the needs of the industrial users.
6.Call center users,E-commerce office,Estate agents,All kinds of public window,Cloud services desktop virtualization platform connected to the computer terminal equipment,Task-oriented office workstations.
7.Other special computer:It can also be used as a remote media player,Advertising machine,All-in-one mini pc,POS machine Equipment of the main parts ect,Use of the secondary development into other products..
Detailed Image of Mini PC
Development tendency
1.Power consumption is getting lower and lower,The power consumption idle state is more than 19W of mainstream products recently,The level of energy efficiency grade 1.
2.Performance is getting higher and higher,The cpu appeared 3.0GHz,except large 3D Games,Basically it meet customers requirements and play movies smoothly.
3.Silent running,There are 2 design of mini pc which is with cooling fan and fanless,Almost no noise,The mini pc with fan design,The noise is less than 30 db (A),Daily environment less than 30 db (A),The human ear has been unable to identify.
The advantages of mini computer
Independent small desktop computer,Small volume and save space,Low power consumption,Cost saving and environmental protection,The main application space is the living room computer,Training,Education,Administrative Office,Government,advertisement and other industries.

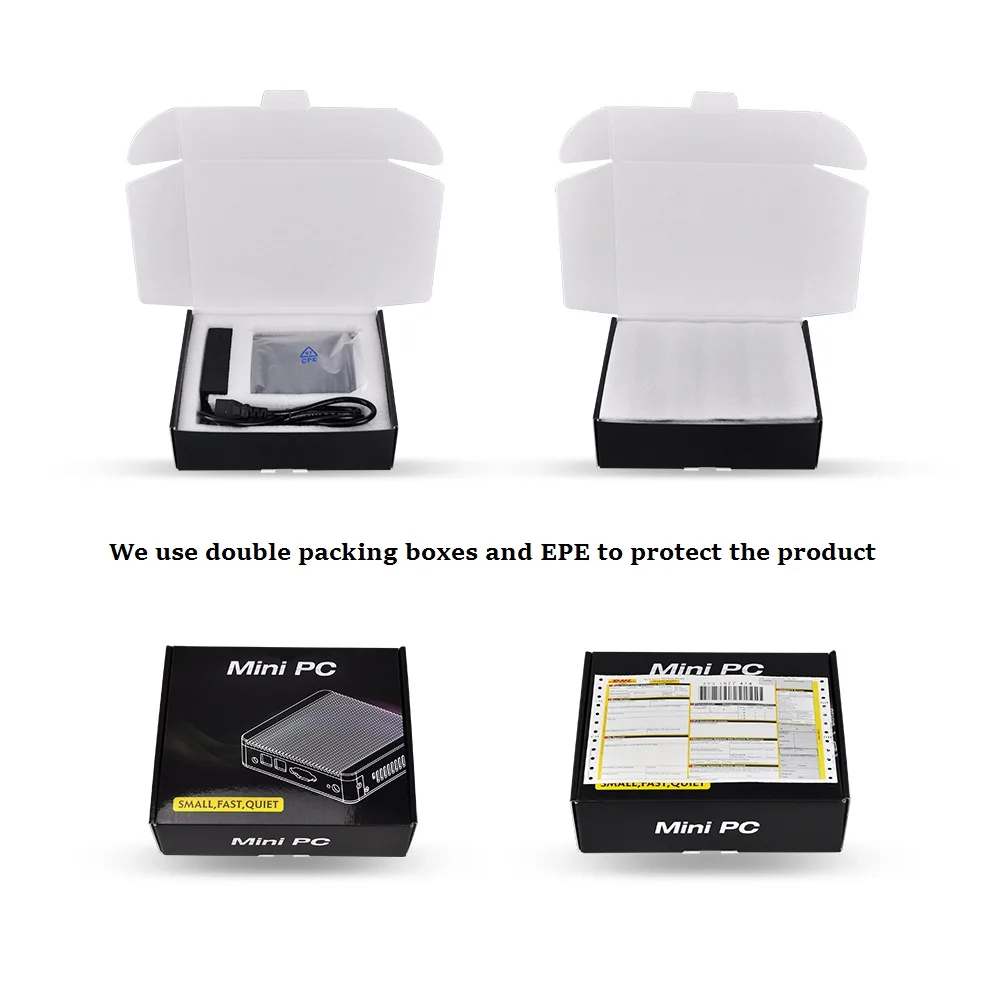

What’s in the Package box?
1* mini pc
1* the holder
2* antenna (if you order wifi)
1* package box
1*12V 5A Power adapter and power plug.

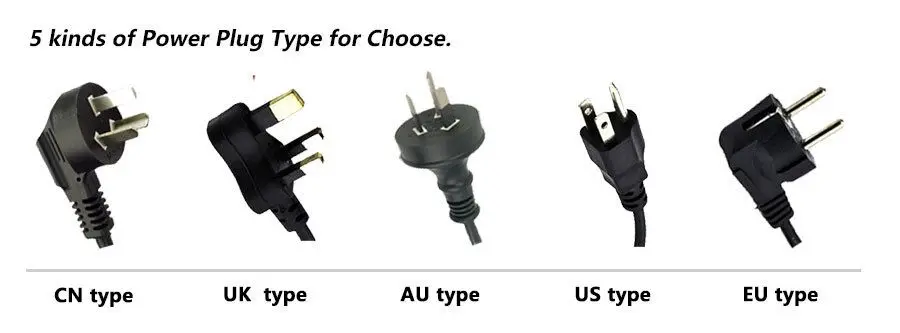

There are 4 kinds of plug: European standard / British standard / Australian standard / American standard)
VESA bracket
It comes with a VESA mounting kit so that you can put it on the backside of a monitor to save space.
WIFI If you order with WIFI, the package box will include 2 pcs antennas.
2. The goods will be sent out within 3 working days after the full payment has been confirmed.
3. It usually takes 3 to 5 working days to the destination by DHL and FEDEX EXPRESS. And it’s about 8 to 14 working days by EMS.
2.We assure you that all the mini pc and accessories have been tested before delivery.
Any question, feel free to ask me. Thank you.
