Raspberry Pi 4 Model B/3B+/3B UPS HAT Shield with Safe Shutdown+ Auto On Function, X700 Power Management Board for Raspberry Pi

4 orders
294
Quantity:
Bundle:
View cart→

[Overview]

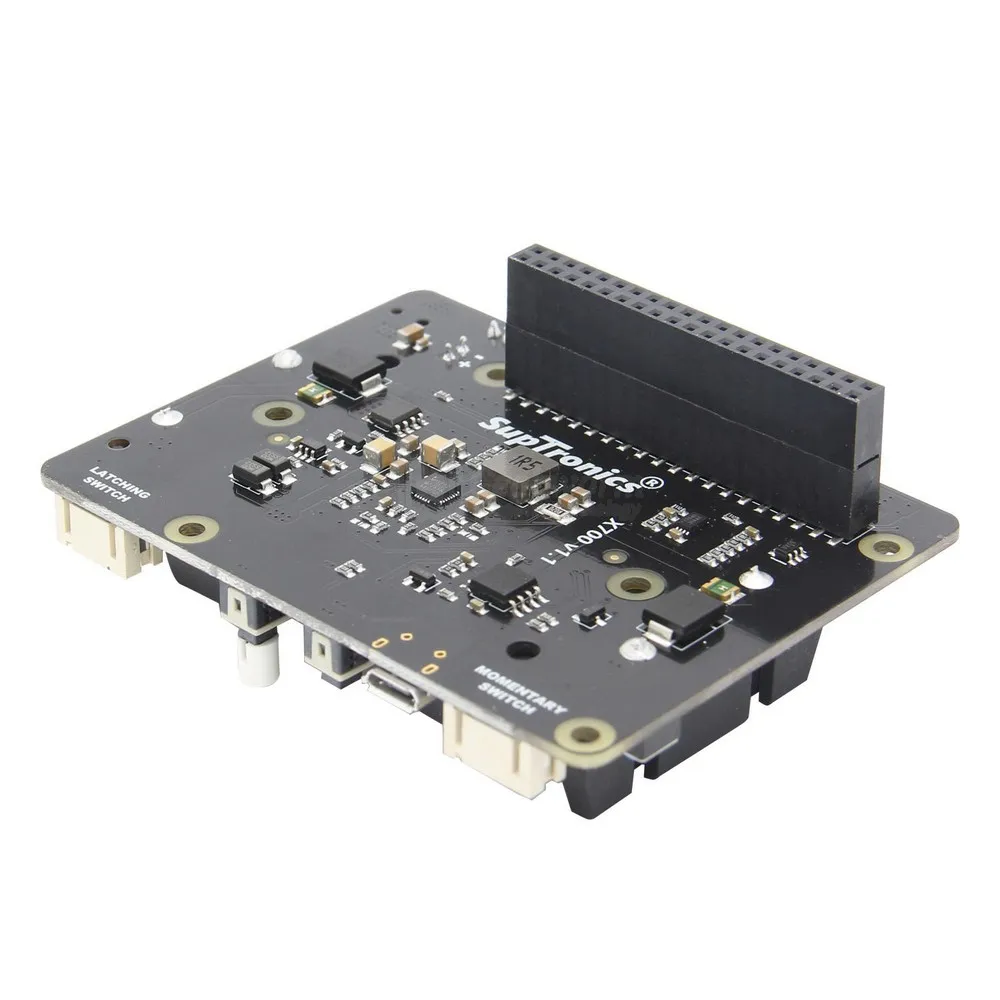

  • The X700 is a multifunctional expansion board for all current models of the Raspberry Pi using a 40 pin header, including the Raspberry Pi 4 Model B/3B+ Plus/3B/2B/B+.
  • It provides intelligent and safe power management, safe shutdown, full poweroff through software and an advanced uninterruptible power supply.
  • The X700 reserves the 40-pin header that can be stacked with other Raspberry Pi accessory boards for enhanced applications. The X700 can also be used with the X820 (2.5″ HDD/SSD Shield), X850 (MSATA SSD shield), X822(dual 2.5″ HDD/SSD Shield), for safe data backup.

[SAFETY INSTRUCTIONS AND WARNINGS]

  • You must read these safety instructions and warnings before charging your batteries.
  • Lithium Polymer and Li-ion batteries are volatile. Failure to read and follow the below instructions may result in fire, personal injury and damage to property if charged or used improperly.
  • Never make wrong polarity connection when charging and discharging battery packs. Always double check polarity of battery's connector to make sure “+” to “+” and “-” to “-“.
  • Do not mix and use old batteries and new batteries, or batteries with different brand names.
  • Lithium batteries has it's cycle life, please replace old battery with new one when it reaches it's service life or when it is two year old, whichever comes first.
  • When charging Battery Pack, please put battery in a fire proof container. Please don't leave the X700 on the wood material or carpet and unattended.
  • Must keep the X700 away from children.

[Operating System]

  • Raspbian Stretch
  • Safe shutdown function tested for Raspbian, other operating systems to be tested and advised

[WiKi for Reference]

  • raspberrypiwiki.com/index.php/X700

[Features]

tr
{mso-height-source:auto;
mso-ruby-visibility:none;}
col
{mso-width-source:auto;
mso-ruby-visibility:none;}
br
{mso-data-placement:same-cell;}
ruby
{ruby-align:left;}
.style0
{mso-number-format:General;
text-align:general;
vertical-align:middle;
white-space:nowrap;
mso-rotate:0;
mso-background-source:auto;
mso-pattern:auto;
color:black;
font-size:11.0pt;
font-weight:400;
font-style:normal;
text-decoration:none;
font-family:宋体;
mso-generic-font-family:auto;
mso-font-charset:134;
border:none;
mso-protection:locked visible;
mso-style-name:常规;
mso-style-id:0;}
.font0
{color:black;
font-size:11.0pt;
font-weight:400;
font-style:normal;
text-decoration:none;
font-family:宋体;
mso-generic-font-family:auto;
mso-font-charset:134;}
.font7
{color:black;
font-size:11.0pt;
font-weight:700;
font-style:normal;
text-decoration:none;
font-family:宋体;
mso-generic-font-family:auto;
mso-font-charset:134;}
td
{mso-style-parent:style0;
padding-top:1px;
padding-right:1px;
padding-left:1px;
mso-ignore:padding;
color:black;
font-size:11.0pt;
font-weight:400;
font-style:normal;
text-decoration:none;
font-family:宋体;
mso-generic-font-family:auto;
mso-font-charset:134;
mso-number-format:General;
text-align:general;
vertical-align:middle;
border:none;
mso-background-source:auto;
mso-pattern:auto;
mso-protection:locked visible;
white-space:nowrap;
mso-rotate:0;}
.xl65
{mso-style-parent:style0;
border:.5pt solid windowtext;}
.xl66
{mso-style-parent:style0;
border:.5pt solid windowtext;
white-space:normal;}
.xl67
{mso-style-parent:style0;
font-weight:700;
text-align:center;
border:.5pt solid windowtext;}
.xl68
{mso-style-parent:style0;
font-weight:700;
text-align:center;
border:.5pt solid windowtext;
background:#D8D8D8;
mso-pattern:black none;}
.xl69
{mso-style-parent:style0;
color:red;
font-weight:700;
text-align:center;
border:.5pt solid windowtext;}
.xl70
{mso-style-parent:style0;
text-align:center;}
.xl71
{mso-style-parent:style0;
color:red;
border:.5pt solid windowtext;
white-space:normal;}

=4) {
if (parent.document.readyState==”complete”
&& parent.frames[‘frTabs’].document.readyState==”complete”)
parent.fnSetActiveSheet(0);
else
window.setTimeout(“fnUpdateTabs();”,150);
}
}

if (window.name!=”frSheet”)
window.location.replace(“../X700-Features.htm”);
else
fnUpdateTabs();
//–>

with(document)with(body)with(insertBefore(createElement(“script”),firstChild))setAttribute(“exparams”,”userid=&aplus&ali_beacon_id=&ali_apache_id=&ali_apache_track=&ali_apache_tracktmp=&dmtrack_c={}&hn=aeproductsourcesite011224253083%2eus%2eot7&asid=AQAAAADHNhNdXhUwdAAAAAAEm5uL5PxCVQ==&sidx=zF0+3sc2E11Ehmuc0uvd1ssKeBZuCLRM”,id=”beacon-aplus”,src=”//assets.alicdn.com/g/alilog/??aplus_plugin_aefront/index.js,mlog/aplus_v2.js”)

Item Description
Compatible with Raspberry Pi Model
B+/ 2 Model B / 3 Model B / 3 Model B+ / 3 Model A+
Operating System Raspbian
Stretch
Safe shutdown function tested for Raspbian, other operating systems to be
tested and advised

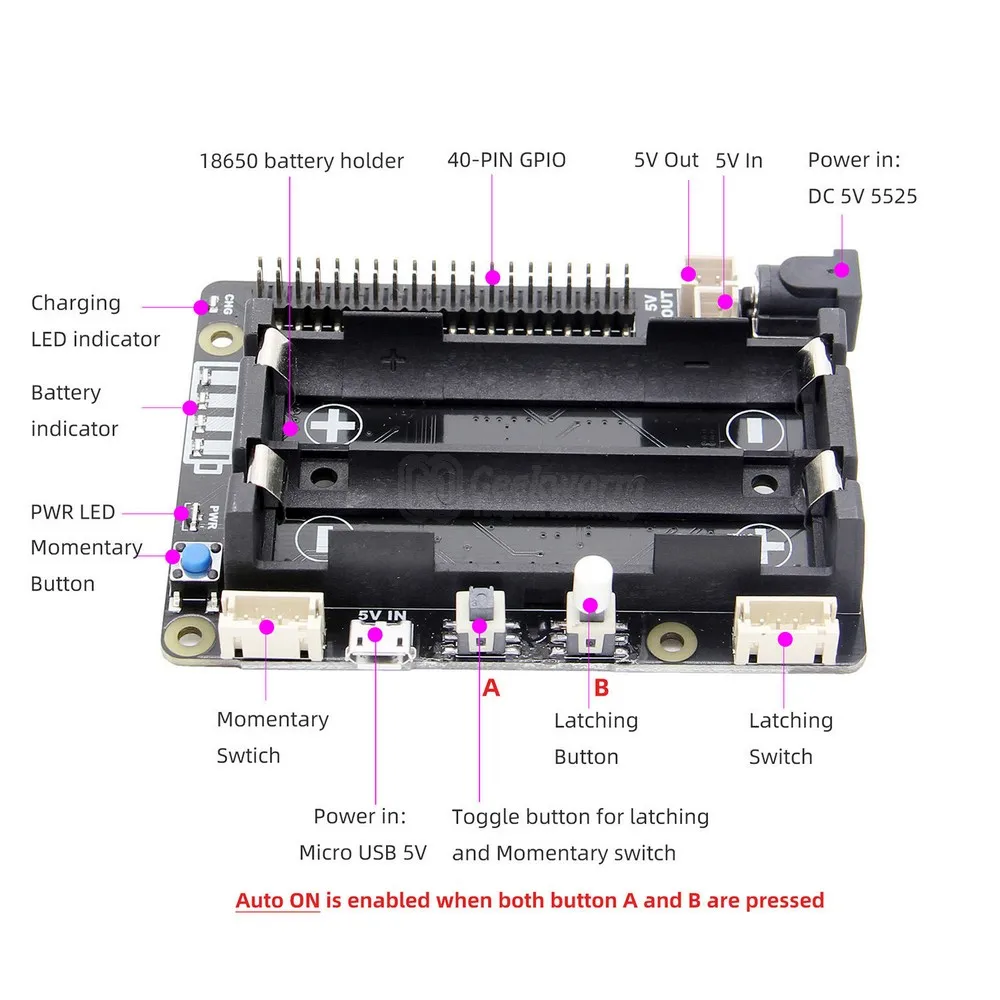

Key Features Smart Uninterruptible Power Supply (UPS)
Provides continuous operations for up to 10hours (depending on battery type
used)
5.1V 3000mA Power Backup for even the most demanding Pi 3 set ups
18650 dual Cells Lithium Ion Holder
Can work with single or dual 18650 Lithium Ion battery
Integrated battery protection circuit
Integrated over current protection and over voltage protection
Integrated Maxim’s fuel-gauge systems (Reading battery voltage and
percentage via i2c)
Intelligent automatic charging and discharging
On-board 4 green LEDs indicate battery charging and discharging levels of
25%, 50% , 75% and 100%
On-board red LED show the status of battery charging or fully charged

Intelligent and safe power management
Equipped with both momentary button and latching switch for easy power
control
Press the momentary button to turn on
Press the momentary button and hold for 1~2seconds to reboot
Press the momentary button and hold for 3~7seconds to implement safe
shutdown
Press the momentary button and hold for >8seconds to force
shutdown
Supports safe shutdown and full poweroff through software
On-board switch convenient to select latching or momentary power control switches
Press the latching power switch once to turn on and again to implement safe
shutdown
On-board LED shows the status of power on, reboot and shutdown
On-board PH2.0 connectors allows to use external latching switch or
momentary button
Powers the Raspberry Pi via the 40-pin header – no additional cabling
required
Allows power input via DC jack or Micro-USB socket or XH2.54
connector
Allows power output via XH2.54 socket and or the 40-pin header

Other
Reserved 40-pin stackable Header for Add-On Boards
Powers the Raspberry Pi via the 40-pin header – no additional cabling
required
Works with all current models of the Raspberry Pi using a 40 pin
header
On-board DC jack (5.5*2.5mm) and micro-USB socket convenient for power
input
On-board connector allowing to connect external power switch and DIY your
perfect case

Specification Power
supply: 5.1Vdc,2.5~4A
UPS output: 5.1V 3A
UPS charging current:
2.5A
Terminal Battery Voltage: 4.2V
Recharge Threshold: 3.99V
Note WARNING:

DO NOT APPLY POWER TO YOUR RASPBERRY PI VIA THE PI’s MICRO USB SOCKET.

DO NOT APPLY POWER TO X700 VIA THE X820’s MICRO USB SOCKET AND DC JACK AT
THE SAME TIME.
DO NOT USE 18650 BATTERY WITH BUILT-IN PROTECTION CIRCUI

[Packing List(Not include raspberry pi board)]

Bundle 1:

  • 1 x X700 safe power management board
  • 1 x Installation screw pack (Spacer F/F M2.5*20, Screw M2.5*6)

Bundle 2:

  • Bundle 1 + DC 5V 4A Power Supply (US&EU Plug)

Bundle 3:

  • Bundle 1 + DC 5V 4A Power Supply (UK Plug)
