What it does
The AC18 leads the way to the next generation routers. With the all-new 802.11ac Wi-Fi dual-band Gigabit wireless, this powerful Dual Broadcom ARM Cortex-A9 CPU and 256MB DDR3 provides the best performance in both 2.4GHz and 5GHz in its class. The 5GHz band peforms up to 1300Mbps, with the 2.4GHz frequency tops 600 Mbps. This serves an incredible combined bandwidth of 1900 Mbps. That’s six times the speed of standard wireless-N routers! With the Beamforming+, built-in high powered amplifiers and external antennas, its coverage ups to 500㎡, you can enjoy lag-free gaming and uninterrupted video streaming anytime anywhere. Smart management via Tenda app for WiFi schedule, LED indicator and power saving which support all of your smart and eco-friendly lifestyles.
Main Features
- Up to 1900 Mbps, 802.11ac(1300Mbps over 5GHz) + 802.11n(600Mbps over 2.4GHz). Broadcom Turbo-QAM technology increases wireless-N data rate to 600 Mbps for 33% faster performance.
- Five Gigabit ports,speed 10/100/1000 Mbps,1x Gigabit WAN port, 4x Gigabit LAN ports.
- Dual-core processor for fast and responsive performance with Wi-Fi, Ethernet and USB devices.
- High powered amplifiers and external antennas for whole-home coverage.
- Beamforming+ technology improves the WiFi range & performance
- 15K Jumbo frame improves the forwarding speed of large data.
- USB 3.0 support Printer Server /Media Server/HDD sharing
- WiFi Button for convenient power saving
AC18 using Broadcom Cortex A9 dual-core high-speed processor, equipped with 10 times faster DDR3 memory, processing data than similar products 30% faster, and more 4 times faster than ordinary router, 4K / UHD video, big game to run as fast as lightning, solid as a rock .
Full Gigabit Wired Connections
Old router transmission is too slow, you can not really play performance fiber optic network, your router needs a replacement. AC18 supports 802.11ac Gigabit WiFi standard, 5GHz WiFi wireless transmission rates of up to 1300Mbps, concurrent dual-band speeds up to 1900Mbps, perfectly matching gigabit fiber network, while supporting computers, mobile phones, Pad, television boxes and other devices at the same fluent and give full play to the highest performance of each terminal.
Optimization of Web-based Games
AC18 hardware using high-quality, reliable components to ensure stable and efficient equipment in all-weather operation, game optimization module can be adjusted to optimize data transfer level, so that you can enjoy every corner of the house without delay, transmission fast gaming experience.
Knife-type Dual-band Array Antenna
Covering a broader and more stable AC18 is equipped with three signal better performance, higher emission efficiency coaxial dual omnidirectional antenna dual-band brass, compared to PCB antenna, covering 30% efficiency, horizontal and vertical coverage concurrent; in order to continue to get good signal antenna elements in particular the use of copper tin plating super antioxidant, the signal stronger, broader coverage.
To get the best signal transmitting and receiving efficiency, it requires scientific sophisticated design. We will zoom to the maximum AC18 antenna spacing, interference to a minimum. The copper pipe diameter is more accurate to 0.01mm, corresponding to the distance of a human hair, so extreme, so that each of your networked devices are fun flying.
5 times Wall-through WiFi
AC18 in enhancing 5GHz WiFi Wall-Penetrating ability while, 2.4GHz WiFi is also used Tenda class signal enhancement technology designed for wall penetration is five times that of ordinary routers and 5GHz WiFi complementary mix, allowing you to Wall-Penetrating cover and double speed video game experience.

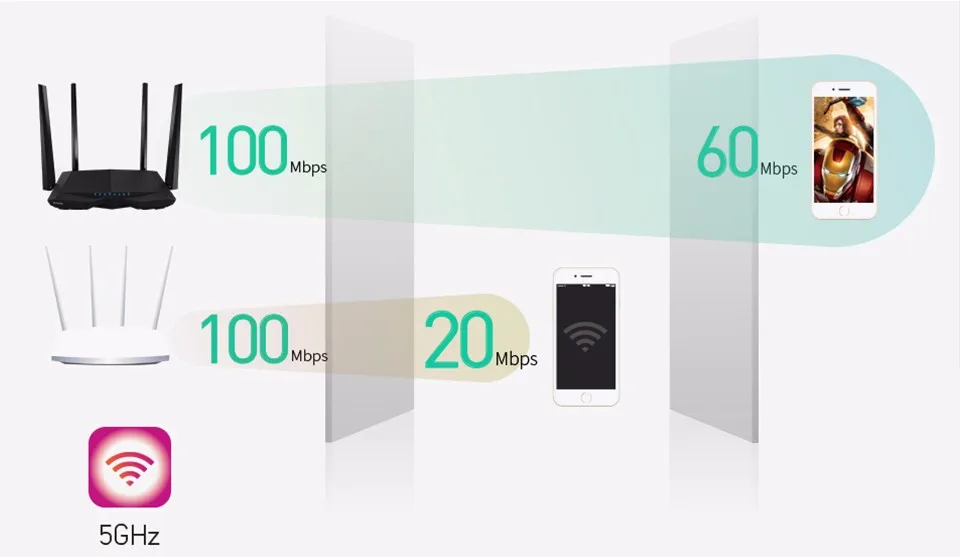

4 Times Wall-Penetrating ability
5GHz band less interference, more independent channels, signal coverage more stable. AC18 set Tenda after 16 years research and development Wall-Penetrating technology, to overcome the weak signal after Wall-Penetrating this common problem 5GHz WiFi, which effectively enhance the performance of Wall-Penetrating four times through three walls, you can get 100Mbps fiber 60Mbps high-speed transmission.
* (The above is Tengda laboratory measured data, and the actual may differ)
500M2 Wider Wireless Coverage
Based Beamforming + AC18 equipped with beam forming technology, the wireless device can be locked in the network and centralized energy directional transmission, make wireless Internet access faster and more stable. Because AC18 built independent PA, LNA and RF chip Tenda superior wireless signal Wall-Penetrating technology, with excellent performance external omnidirectional antenna, Wall-Penetrating strong ability to cover as much as 500 square meters. FEM configure high-performance chip, 5G WiFi radio frequency coverage than similar products more 40%, allowing you to bid farewell WiFi blind, to ensure signal stability.
USB3.0 Storage Sharing & Print Server
AC18 is equipped with high-speed USB 3.0 interface, support for storage sharing, print server and other extensions. Connect the hard disk, the home server creates complete; wonderful film, travel photos can quickly implement store, share happiness with their families.
Super Configuration, Casual Flash
1, the dual-core A9 processor, equipped with 128MB Nand Flash, 256MB DDR3 memory to meet all major third-party firmware configuration, no change can be Flash.
NOTE: Nand Flash internal nonlinear macrocells mode, with large capacity, rewrite speed, etc., suitable for storing large amounts of data, can better play the third-party firmware performance.
2, AC18 comes recovery mode, when the system fails to write, rescue mode provides an interface for rewriting the firmware, do not worry Flash process machine into bricks, really make you feel free Flash.
WiFi Timing & Intelligent Power Saving
WiFi timing function can define free WiFi turn-on and turn off time, for you and your family to create a healthy home environment; external WiFi switch can be a key to open / close the WiFi, care of the child care for her, Tengda smart power technology based on, when you do not use the Internet, it will automatically enter the sleep state, according to sleep eight hours a day count, a year can save 95 degrees of electricity; intelligent LED indicator, the dark will automatically shut down, let you sleep more sweet.
Mobile Download Tenda App, keep control of the home network and equipment; prevention of theft network, channel optimization, channel intensity adjustment, safety testing, and a series of cloud management functions can be set anywhere, easily managed through App.
Easy Setup
AC18 router equipped with well-developed a new easy installation setup interface, intelligent network diagnostic functions, operating with sound installation prompts guide users to easily complete the entire installation, do not understand the network can be quickly set up Internet access.
Language Firmware Bundles
You are free to choose which firmware you want.
Russian Firmware
ASUS Merlin Multi-Language Firmware
Product specification
|
Interface
|
1 *Gigabit WAN port; 4 * Gigabit LAN ports; 1 * USB3.0 port
|
|
ROM
|
1Gbit NAND Flash
|
|
RAM
|
2Gbit DDR3
|
|
Indicator
|
power light, Internet light, LAN port lights, 2.4G WiFi, 5G WiFi, WPS, USB, light system
|
|
Frequency
|
Simultaneous dual band 2.4GHz & 5GHz
|
|
Power
|
Input: 100-240V-50 / 60Hz, 0.9A
Output: DC 12V == 2.5A
|
|
Button
|
power switch, WiFi switch button, reset button, WPS button
|
| Standard |
IEEE 802.11ac/a/n 5GHz; IEEE 802.11b/g/n 2.4GHz
|
|
Transfer rate
|
802.11n (2.4GHz): 600Mbps; 802.11ac (5GHz): 1300Mbps
|
|
Operating mode
|
Wireless router mode; AP mode; wireless repeater mode; WISP mode
|
|
Wireless Security
|
WPA-PSK / WPA2-PSK, WPA / WPA2; disable and enable wireless encryption; WPS fast and secure connection
|
|
DHCP server
|
Support
|
|
Software features
|
Wireless signal conditioning, WiFi timer switch, LED timer switch, intelligent power-saving, guest network, parental control, VPN server, FTP server, SAMBA server, printer server, DDNS, virtual servers, assign a static IP static router
|
|
Package content
|
1 x 1900M 11ac Gigabit ports Enhanced wireless router; 1 x RJ-45 5 class cable; 1 x Quick Installation Guide; 1 x Power Adapter |
